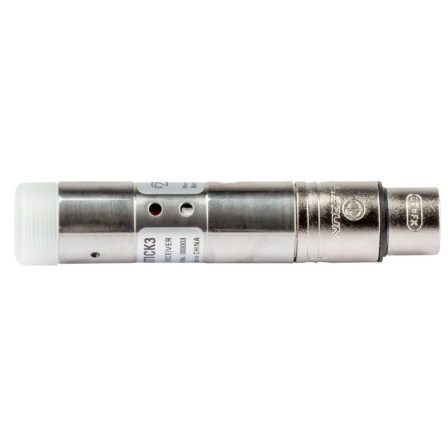

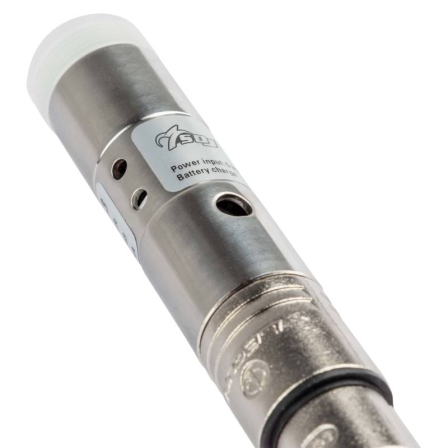

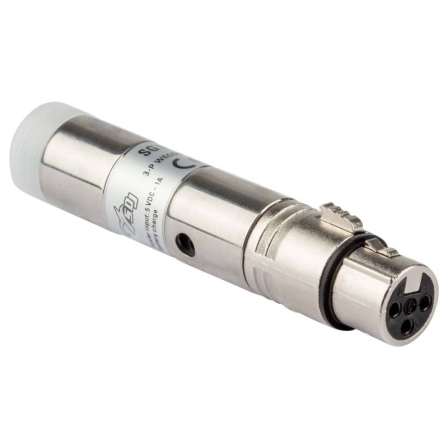

SDJ WECON STICK BATTERY WIRELESS DMX RECEIVER

WECON Stick

Receptor DMX inalámbrico

Frecuencia de funcionamiento: 2,402 - 2,480 GHz, ISM, 79 canales

Conexión XLR macho de 3 polos

Funciona con batería

Autonomía: 20 horas

-

Tecnical data

• DMX Wireless Transmitter/Receiver

• Range: 600 meters (line-of-sight)

• Number of channels: 512

• Operational Frequency: Frequency: 2.402 - 2.480GHz, ISM, 79 channels

• FHSS: 1100 hops / sec

• Modulation method: GFSK

• Maximum Transmit Power: 22dBm

• Receiver Sensitivity: -93dBm

• 32-bit ARM Processor, DMA transfer without delay

• 3-poles XLR In/Out connectors

• One-touch button with a Tri-color status indicator

• Built-in Wireless Solution Compatibility Mode receiver and transmitter

• Group Mode and dmx protocols easy selection

Power supply

• Input voltage: 5VDC with USB Type-C connector

• AC/DC adapter and USB charging cable included

• Power consumption: 500 mA@5V DC max

Weight and dimensions

• Weight: 230 g

• Dimensions: 103x75x35 mm
