SDJ SG WECONBOXIP

Marca: SDJ
P/N: SG WECONBOXIP
EAN: 8032496984160
Disponibilidad: Disponible
Envío Gratuito

590,00 ¤

*IVA Incluido

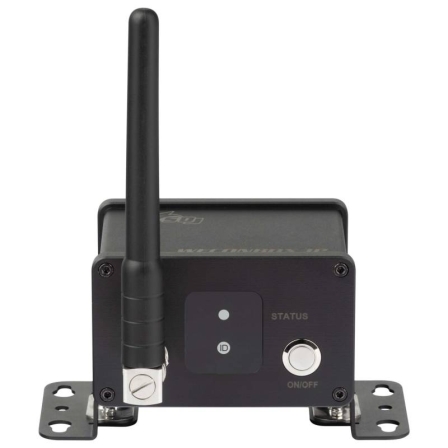

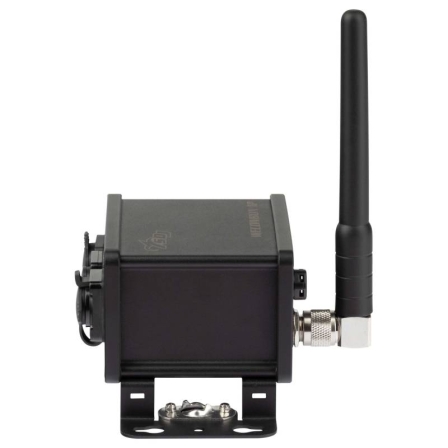

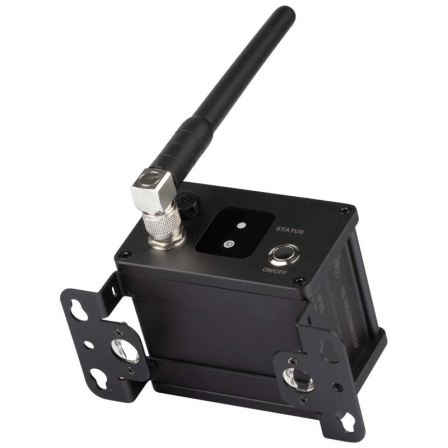

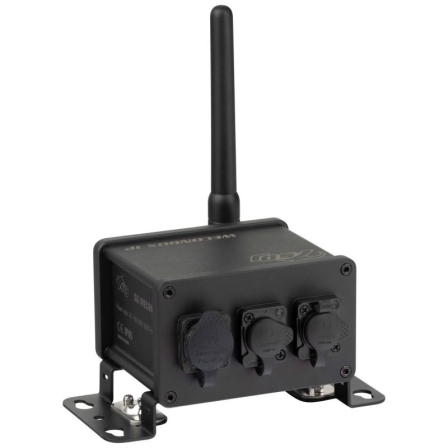

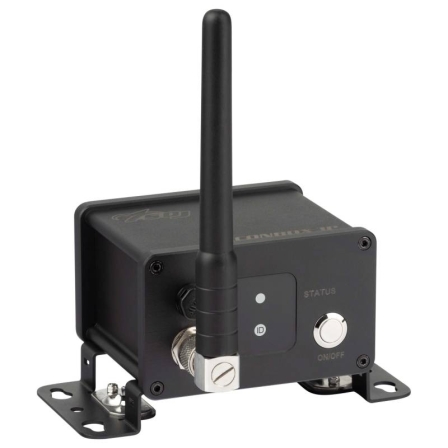

WECon Box IP
Transmisor / Receptor Wireless DMX
Operating frequency 2.402 - 2.480GHz, ISM, 79 channels
3-pole IP65 XLR IN / OUT DMX connectors
Reception sensitivity -94dB
IP65 protection degree
-

Tecnical data

• DMX Wireless Transmitter/Receiver

• Range: 600 meters (line-of-sight)

• Number of channels: 512

• Operational Frequency: Frequency: 2.402 - 2.480GHz, ISM, 79 channels

• FHSS: 1100 hops / sec

• Modulation method: GFSK

• Maximum Transmit Power: 22dBm

• Receiver Sensitivity: -93dBm

• 32-bit ARM Processor, DMA transfer without delay

• 3-poles XLR In/Out connectors

• One-touch button with a Tri-color status indicator

• Built-in Wireless Solution Compatibility Mode receiver and transmitter

• Group Mode and dmx protocols easy selection

Power supply

• Input voltage: 5VDC with USB Type-C connector

• AC/DC adapter and USB charging cable included

• Power consumption: 500 mA@5V DC max

Weight and dimensions

• Weight: 230 g

• Dimensions: 103x75x35 mm
