SAGITTER AQUBAR 16P

Potente, precisa y diseñada para aplicaciones profesionales, la barra LED RGBW AQU Bar16P ofrece una salida de luz excepcional y un control total del color. Con 16 LEDs a todo color de 20 W, proporciona una iluminación intensa y uniforme, lo que la hace ideal para eventos en vivo y aplicaciones en exteriores gracias a su clasificación IP65. El control píxel a píxel y la temperatura de color correlacionada (CCT) con preajustes de 2700 K a 8000 K permiten un control preciso y creativo de la temperatura de color. Fabricada en aluminio fundido a presión de alta resistencia y con un frontal de vidrio templado, la AQU Bar 16P combina robustez y diseño, garantizando una excelente fiabilidad a largo plazo.

LIGHT SOURCE

• 16x20W led RGBW Full Color

• LED lifespan: > 50.000h

• LED refresh frequency: adjustable from 600 Hz to 18 KHz. Anti flicker

OPTIC SYSTEM

• Beam Angle: 12°

• Illuminance: 22000lux @ 2mt - Full ON

• Illuminance: 5000lux @ 5mt - Full ON

COLOR SYSTEM

• RGBW Full color

• Infinite chromatic possibilities

EFFECTS

• Linear dimmer 0-100%

• Adjustable strobe effect

• Color macros selectable via DMX

CONTROL AND PROGRAMMING

• 8 DMX configurations available: 2/4/9/13/25/32/64/72 channels

• Master/Slave mode

• Static color mode

• Color mode with 51 color macros selectable by DMX

• Auto mode with 22 programs

• Single pixel control

• Color calibration system

• CCT control: virtual wheel with 9 macros (from 2700K to 8000K)

• 4 dimmer curves (Linear - Square - InvSquare - S-Curve)

• 4 dimmer modes

• Protocols: DMX 512, RDM

STRUCTURE AND CABINET

• High corrosion resistance 6063 die cast aluminum housing

• LCD color graphic display

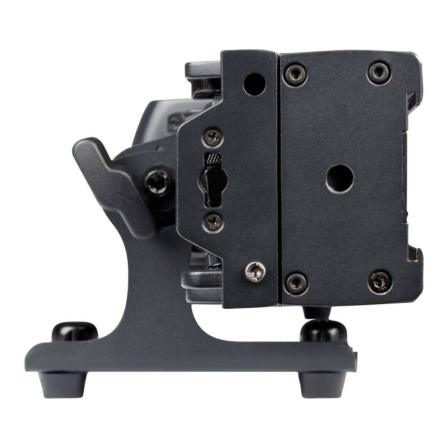

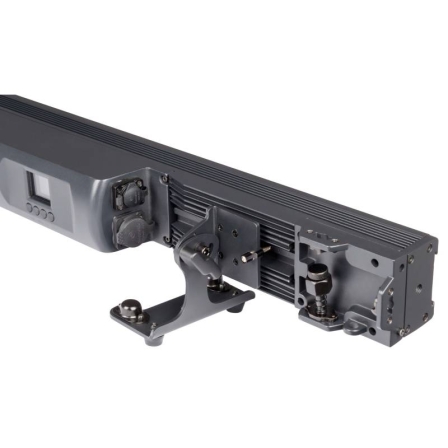

• Mounting points: 2 pairs of 1/4-turn locks omega older

• Front tempered glass

• “Light up” positioning with adjustable angle +/- 180°

• IP rating: IP65

• XLR 3-poles DMX IN/OUT connections IP65

• Convection cooling system without fans

• Frost filter included: 40° - 60° x 10°

POWER SUPPLY

• Input Voltage: AC~100-240V, 50/60 Hz

• Switching power supply unit

• Max power: 270W @ 230VAC

• Seetronic X Series IP65 Power Connectors IN/OUT

• Power supply cable 1mt included

• Max current output from Power OUT connector 10A @ 230VAC

WEIGHT AND DIMENSIONS

• Net weight: 9,15 kg

• Dimensions: 1017x105x140(h) mm
