1 × 400 W RGBAL COB LED CRI≥84Ra LED lifespan: > 50.000h LED refresh frequency: > 400Hz anti-flicker
Optic system
Beam angle: 80° without lenses - 33° Fresnel lens - 63° frost lens Luminous flux of FULL ON: 460 lx @ 5m without lenses Luminous flux of FULL ON: 1182 lx @ 5m with 33° Fresnel lens Luminous flux of FULL ON: 318 lux @ 5m with 63° frost lens
Color system
RGBAL LEDs (cells)
Effects
16-bit dimmer Dimmer curves: 4 selectable dimming curves available Halogen dimming speed emulation Red Shift function (tungsten dim-to-warm emulation) High speed electronic strobe, pulse, single sectors FX with adjustable speed, duration and rate Virtual color wheel with 109 numeric gel filters presets CTC from 1750K to 20000K Selectable PWM: adjustable from 1000 Hz to 20 KHz Emergency mode: editable dimmer level, color or color temperature when DMX signal is lost

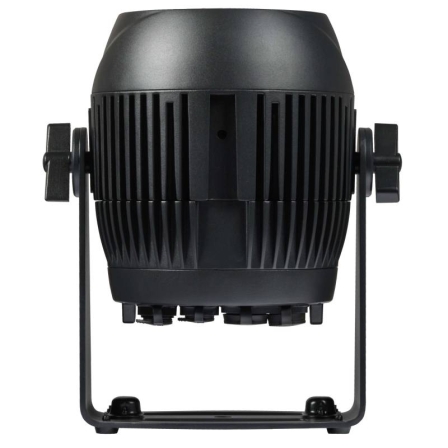

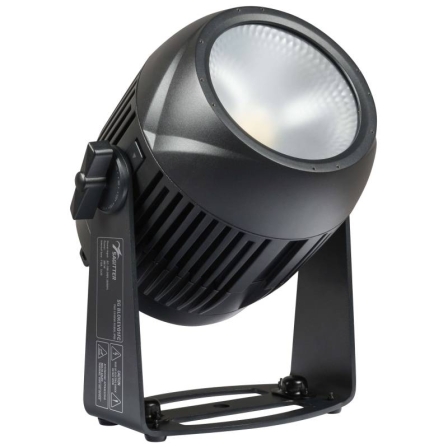

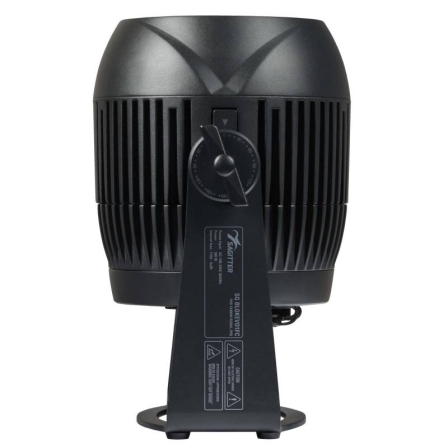

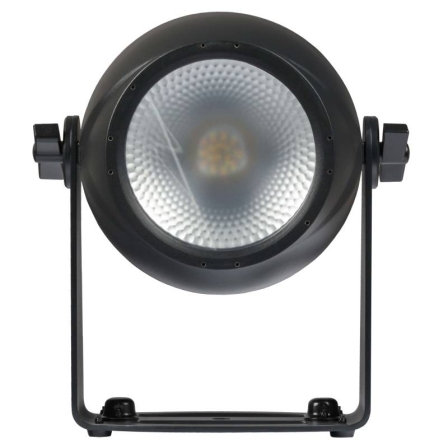

Die cast aluminium housing LCD graphic display Quick-release anchor points, on-board mechanics for stacking multiple devices “Light up” positioning with adjustable angle Mounting points: 2 pairs of 1/4-turn locks omega bracket IP rating: IP65 DMX 5-poles XLR IN/OUT IP65 connectors Low-noise controlled cooling system
Power supply
Input Voltage: AC~100-240V, 50/60 Hz Switching power supply unit Max power: 430W @ 230VAC Seetronic X Series IP65 Power Connectors IN/OUT Power supply cable 1,0 mt included
Weight and dimensions
Net weight: 4,5 kg Dimensions: 190x190x223 mm (without bracket)
